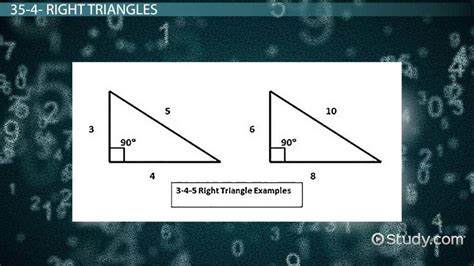

So you're building something and need a perfect square corner, right? The 3 4 5 triangle method is basically this old-school trick that carpenters and landscapers have been using forever. It's dead simple geometry based on the Pythagorean theorem - you know, that thing from math class you thought you'd never use. A triangle with sides of 3, 4, and 5 units will always, and I mean always, give you a perfect 90-degree angle opposite that longest side. The best part? You don't need fancy tools. Just grab a measuring tape and something straight.

Here's how it goes down. You measure 3 units along one line, then 4 units along another line that should be perpendicular. Then you check the distance between those two marks - if it's exactly 5 units, you've got yourself a square corner. It's kind of magic how simple it is. Whether you're framing a house, laying tile, or setting fence posts, this is one of those foundational skills that just works.

Why is the 3 4 5 method used for squaring corners?

Honestly? Because it just works, and you don't need a protractor or a carpenter's square. Think about it - 3 squared is 9, 4 squared is 16, add 'em up and you get 25, which is 5 squared. That's the Pythagorean theorem doing its thing. When you're working on something big, like checking a room layout or a foundation, your standard square is way too small. This method scales up beautifully. Plus it's portable - just a tape measure in your pocket and you're good to go. DIY folks love it, pros rely on it.

How do you use the 3 4 5 triangle method step by step?

Alright, let's break this down. It's really not complicated:

  • Step 1: Pick your corner. Mark 3 units along one side - could be feet, meters, whatever floats your boat.
  • Step 2: From the same starting corner, mark 4 units along the other side that you want to be perpendicular.
  • Step 3: Now measure between your two marks. Keep adjusting the angle until that distance hits exactly 5 units.
  • Step 4: Once you're there, that's your 90 degrees. Lock it in and get to work.
Tip: For bigger jobs, just scale up the numbers - 6-8-10 or 9-12-15. The ratio stays the same, the accuracy stays solid.

What are common applications of the 3 4 5 triangle method?

You'll find this trick all over the place in different trades. Here's where it really shines:

ApplicationDescription
Framing wallsMakes sure corners are square so drywall and studs line up properly.
Laying tile or flooringKeeps your starting lines perpendicular so patterns don't go wonky.
Setting fence postsGets those corner angles right in fencing layouts.
LandscapingSquares up garden beds, patios, walkways - all that good stuff.
Building foundationsChecks concrete forms to make sure the base is square.

Can the 3 4 5 method be used for large measurements?

Yeah, absolutely. That's the beauty of it - you can scale it however you want. Doubling gives you 6-8-10, tripling gets you 9-12-15. For really big stuff like building foundations you might go 30-40-50 feet. The key is keeping your units consistent - don't mix feet and inches or metric and imperial, that's just asking for trouble. And make sure your marks are precise. This scaling thing makes it work for everything from tiny DIY projects to massive construction sites.

What mistakes should you avoid with the 3 4 5 method?

Look, people mess this up all the time. Here's what to watch out for:

  • Inconsistent units: Pick one system and stick with it. Mixing feet and inches? Recipe for disaster.
  • Loose or stretched tape: Your tape measure needs to be taut. Sagging throws everything off.
  • Measuring from the wrong point: Always start at the exact corner intersection, not some random spot along the line.
  • Ignoring ground slope: On uneven ground, use a level or string line. Otherwise your measurements are lying to you.

Frequently Asked Questions

Is the 3 4 5 method only for right angles?

Yeah, that's its one trick. It only does 90-degree angles. If you need 45 or 60 degrees, you're looking at a different method or tool entirely - maybe a compass or protractor.

Can I use metric units with the 3 4 5 method?

Totally. The math doesn't care about units. Use 3 meters, 4 meters, 5 meters - works exactly the same. Just keep everything in metric, don't switch around.

What if I don't have a tape measure long enough?

Get creative. Use a string or rope with knots tied at the 3, 4, and 5 marks. Or go smaller with something like 1.5-2-2.5 units - just know that smaller measurements mean bigger relative errors.

How accurate is the 3 4 5 method?

Honestly, pretty dang accurate if you're careful - we're talking fractions of a degree. Good enough for most construction and DIY. If you're doing something that needs extreme precision, like engineering, you might want laser levels or digital squares instead.

Short Summary

  • Simple Geometry: The 3 4 5 method uses the Pythagorean theorem to create a perfect right angle with just a measuring tape.
  • Step-by-Step Process: Mark 3 and 4 units from a corner, then adjust until the diagonal is 5 units to square the angle.
  • Scalable and Versatile: Use multiples like 6-8-10 for larger projects; it works in construction, landscaping, and DIY.
  • Common Mistakes: Avoid inconsistent units, loose tapes, or measuring from wrong points to maintain accuracy.
